Custom CNC Machined Brass Saddle Block | Precision Shaft Support Block Manufacturer

Precision CNC Machined Saddle Block

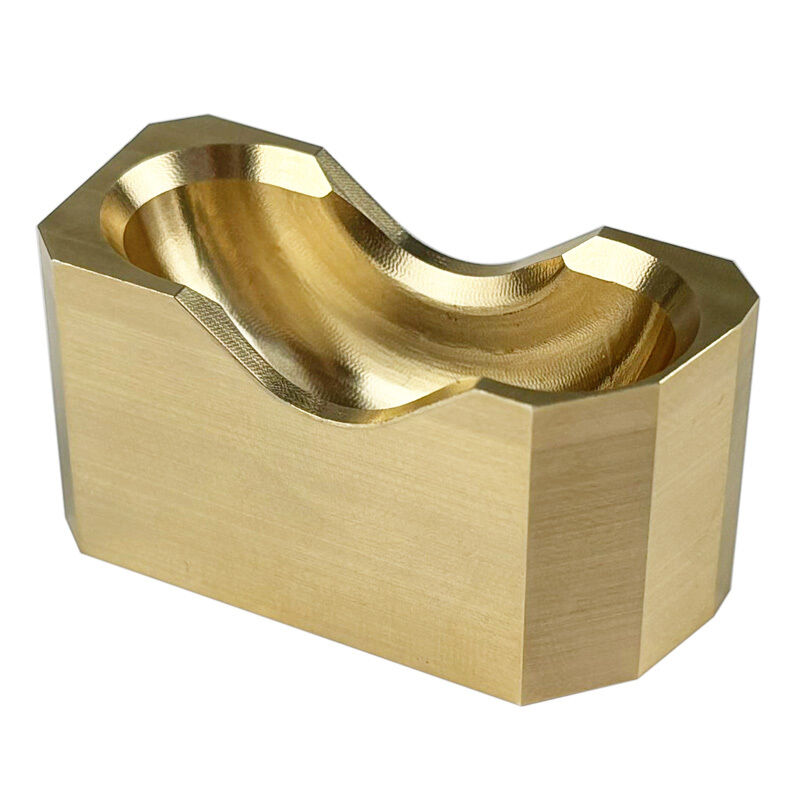

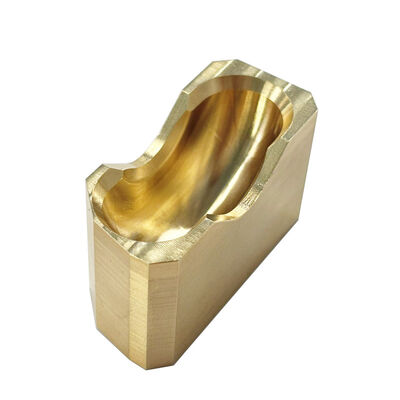

This product is a high-precision, CNC-machined copper alloy saddle block. Manufactured using advanced CNC milling processes, it is primarily designed to support and position cylindrical workpieces—such as shafts, tubes, or rollers.

Featuring excellent wear resistance, self-lubricating properties, and stable mechanical performance, this product is widely utilized in mechanical equipment, automation systems, and industrial fixturing applications.

We offer custom CNC machining services based on client-provided drawings or samples, ensuring that specific structural and precision requirements are met.

• High-Precision Machining

  Utilizing precision CNC machining technology, we achieve a machining tolerance of ±0.005mm, ensuring exceptional assembly accuracy.

• Curved Structural Design

  The semi-circular groove design provides a perfect fit for shafts and cylindrical components, ensuring stable support and precise positioning.

• Premium Copper Alloy Material

  Possesses excellent wear resistance, thermal conductivity, and corrosion resistance, making it suitable for long-term operation in demanding environments.

• High Surface Finish

  The inner curved surface undergoes a fine finishing treatment to minimize friction and extend the product's service life.

Machining Process: CNC Milling

Material: Brass / Copper Alloy

Precision: ±0.005mm

Surface Finish: Fine Finish / Polishing

Structure: Curved Groove

Application: Support / Positioning / Guiding

• Industrial Machinery

  Used for shaft support, guide components, and structural parts within mechanical equipment.

• Automation Equipment

  Used as positioning blocks for fixtures and mechanical guide components.

• Mold & Die Industry

  Used for mold positioning and workpiece clamping/fixing.

• Precision Equipment

  Used as support and positioning components within high-precision assembly systems.

We offer comprehensive CNC machining capabilities:

• CNC Milling
• Multi-Axis Precision Machining
• Small-Batch & Mass Production
• Rapid Prototyping

• Professional CNC Machining Manufacturer
• Extensive Experience in Copper Alloy Machining
• Rigorous Quality Control System
• High-Precision Machining Capabilities
• Experience Serving Global Clients

1. Are you a trade company or manufacturer?

   We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

2. Can you protective my business, will my drawing be safe after you get it?

   Yes, we can sign the NDA before you send the drawing.

3. Available for customized design drawings?

   Yes, CAD, STEP, IGS, PDF, Solidwork, etc.

4. Do you provide samples?

   Yes, there is a sample charge, the sample charge can be refunded when place the order.

5. How soon can I get your quotation?

   Within 12 hours.

6. What's the lead time?

   5-25 working days, based on order quantity.
